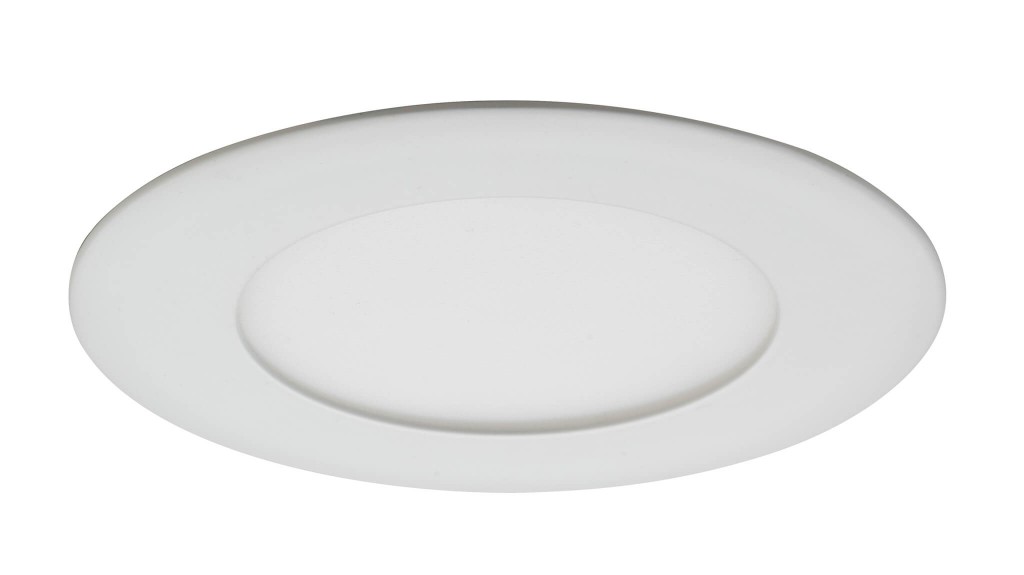

Razor CCT FR preview image big

THE RAZOR FAMILY CONTINUES TO GROW

This new Razor CCT offering comes with a patent pending design 2-Hour Fire Rating and a trademark Fire Safe™ back plate which provides a reinforced and heat resistant steel casing. This unique design and technology offers an affordable solution in applications that require up to a 2-hour fire rating.

In conjunction with fire rating building codes for ceiling materials (example: type-X gypsum), no additional accessories are needed. Simply cut the correct hole diameter, wire the junction box, and then install the light unit. Installation is complete!

It features a selectable color temperature feature located on the back of the light unit. With a simple flick of the switch, the user has the choice of 3 color temperatures. For ease of color selection, the switch is located on the light unit instead of the junction box and still allows the unit to slip under a joist application.

This wet location and IC rated collection is offered in our most popular flat designs, in either a 4" or 6".


size
model
finish
white finish
CRI

90+

specification sheet

Fill in these fields to include in the specification sheet

technical specifications
2 HOUR FIRE RATING- Tested to comply with UL263, ASTM E119 & CAN/ULC S101
Commercial Grade Driver - for 24 hour usage applications
Heavy Duty commercial grade spring clips - offer greater heat resistance
Edge-lit LED construction - offers high lumen output performance
CRI: >90
features
  • 18" connector cable between light unit and junction box
  • Color changing selector located on back of light unit
  • Easy installation
  • Includes FT6 wire cable
  • Slim low-profile design - IC, WET LOCATION and AIR-TIGHT rated
ratings
2-hours fire rating rating icon
Air Tight rating icon
Dimmable rating icon
ETL rating icon
Energy Star rating icon
IC Rated rating icon
Patent Pending rating icon
Wet Locations rating icon
Brochures
PDF icon
Razor CCT FR
specification sheets
Installation Guides
PDF icon
Razor CCT FR Installation
General Information
PDF icon
Goof Ring Sizing Chart
PDF icon
Hole Saw Sizing Chart
PDF icon
NDR RAZOR DIMMER COMPATIBILITY CHART
PDF icon
Mounting Plate Compatibility Chart
PDF icon
WARRANTY LIGHTING
