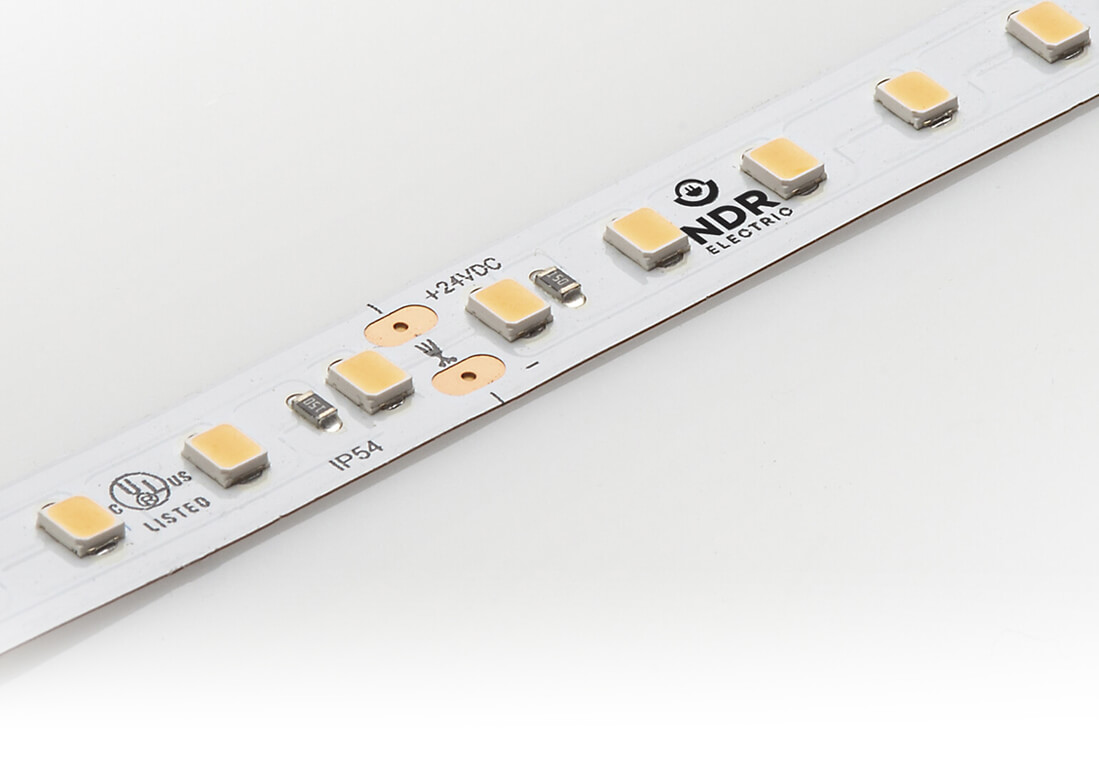

NDR Lighting Pinnacle 600 Series LED Tape Light offers industry specification grade technology and is well suited in applications which are exposed to moisture. It features a thin Nano-Skin coating technology giving this product a durable protective layer and an IP54 damp location rating.

To ensure that our CRI>94 color rendering and our high output lumen package of greater than 550LM/ft are always maintained, all our LEDs are selected using the 3-Step MacAdam binning criteria. This stringent protocol step ensures uniformity in both color and light intensity consistently across the entire run of lighting installed.

Indoor applications: kitchen cabinets, bathroom vanities, large coves, hallways, architectural designs.

Outdoor applications: covered gazebos, roofed patios or any protected areas not exposed to direct contact with water.

model
CRI

94+

features
  • 3-Step MacAdam LED binning
  • 3M™ mounting tape
  • 3oz Copper per sq. ft. – Specification Grade
    • Thicker layer offers less electrical resistance and voltage drops
  • Cuttable every 2.8”
  • Full range dimmability
  • IP54 rated – Damp location
  • Maximum run – 16.4FT (5M)
  • Suitable for use in closet spaces
ratings
Class 2 rating icon
Damp Locations rating icon
Dimmable rating icon
UL listed rating icon
specification sheets
PDF icon
TL600
Installation Guides
PDF icon
Pinnacle 24V Installation
Photometrics
PDF icon
TL600
✕
